476 - anti skid control (chassis) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1997 - 01.1998 grade FX transmission AT (automatic transmission )

---

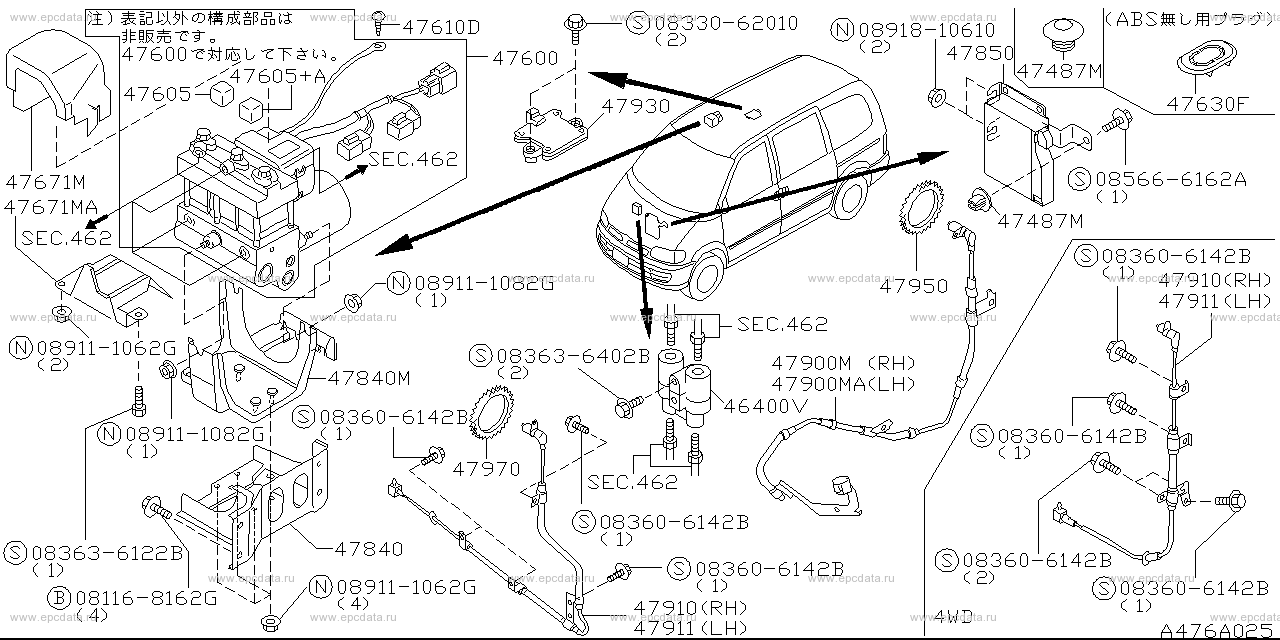

Applies for models	Manufacture period	Spec
W +4DV +5DV	08.1995 - 01.1997

Open full screen picture Up to the top

081168162G 0833062010 083606142B 083636122B 083636402B 085666162A 089111062G 089111082G 0891810610 46400V - valve assembly, pressure control 47487M - grommet 47600 - actuator assembly, anti skid 47605 - relay assembly, actuator 47605+A - relay assembly, actuator 47610D - screw 47630F - plug 47671M - cover, actuator 47671MA - cover, actuator 47840 - bracket, actuator 47840M - bracket, actuator 47850 - module assembly, anti skid (ABS CONT UNIT) 47900M - sensor assembly, anti skid rear 47900MA - sensor assembly, anti skid rear 47910 - sensor assembly, anti skid front RH 47911 - sensor assembly, anti skid front LH 47930 - sensor, deceleration 47950 - sensor rotor, anti skid rear 47970 - sensor, rotor anti skid front

---

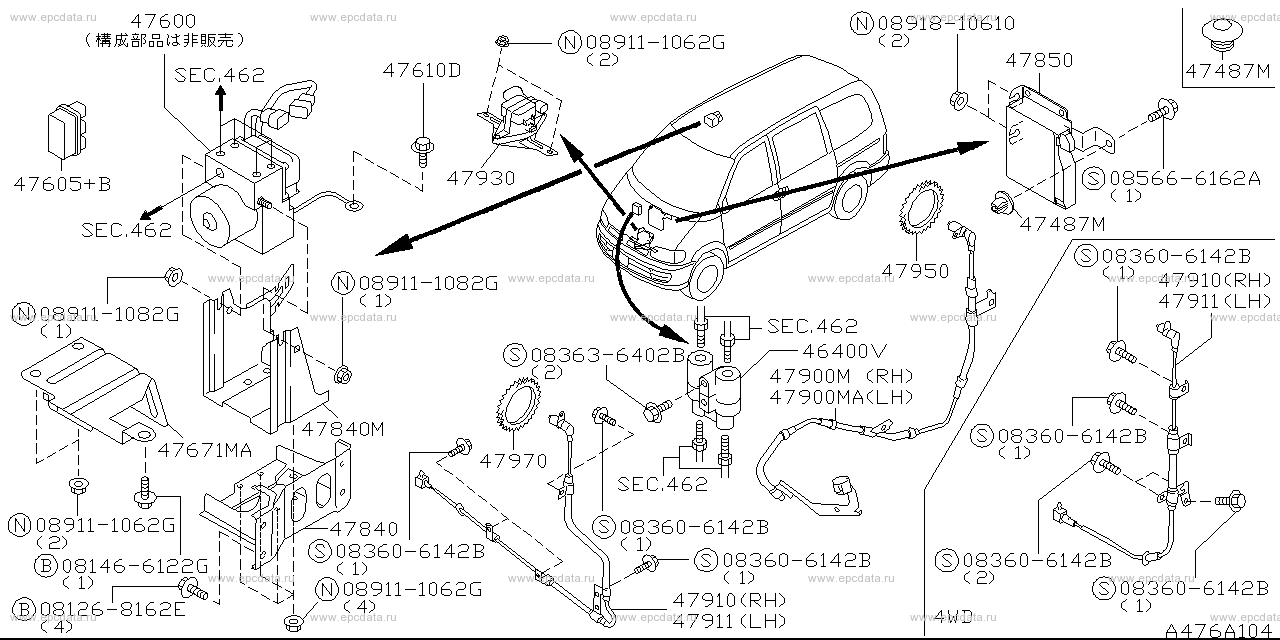

Applies for models	Manufacture period	Spec
W +4DV +5DV	01.1997 - 04.1997

Open full screen picture Up to the top

081268162E 081466122G 083606142B 083636402B 085666162A 089111062G 089111082G 0891810610 46400V - valve assembly, pressure control 47487M - grommet 47600 - actuator assembly, anti skid 47605+B - relay assembly, actuator 47610D - screw 47671MA - cover, actuator 47840 - bracket, actuator 47840M - bracket, actuator 47850 - module assembly, anti skid (ABS CONT UNIT) 47900M - sensor assembly, anti skid rear 47900MA - sensor assembly, anti skid rear 47910 - sensor assembly, anti skid front RH 47911 - sensor assembly, anti skid front LH 47930 - sensor, deceleration 47950 - sensor rotor, anti skid rear 47970 - sensor, rotor anti skid front

---

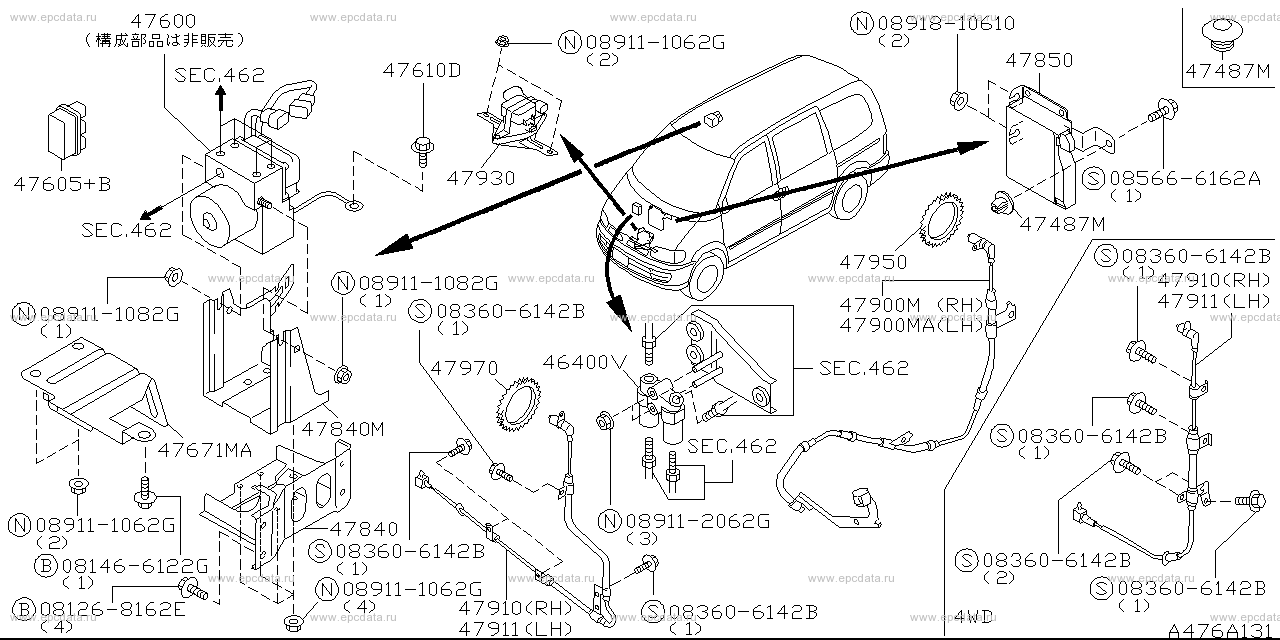

Applies for models	Manufacture period	Spec
W +4DV +5DV	04.1997 - 01.1998

Open full screen picture Up to the top

081268162E 081466122G 083606142B 085666162A 089111062G 089111082G 089112062G 0891810610 46400V - valve assembly, pressure control 47487M - grommet 47600 - actuator assembly, anti skid 47605+B - relay assembly, actuator 47610D - screw 47671MA - cover, actuator 47840 - bracket, actuator 47840M - bracket, actuator 47850 - module assembly, anti skid (ABS CONT UNIT) 47900M - sensor assembly, anti skid rear 47900MA - sensor assembly, anti skid rear 47910 - sensor assembly, anti skid front RH 47911 - sensor assembly, anti skid front LH 47930 - sensor, deceleration 47950 - sensor rotor, anti skid rear 47970 - sensor, rotor anti skid front

---

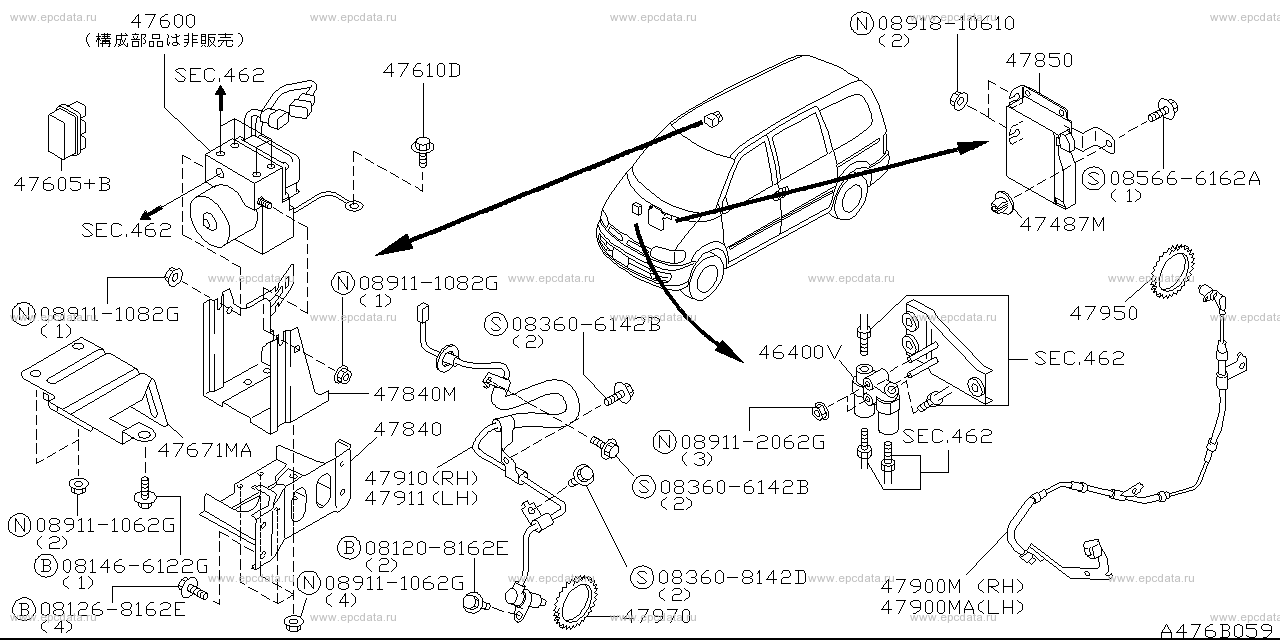

Applies for models	Manufacture period	Spec
W.2WD	01.1998 - ...

Open full screen picture Up to the top

081208162E 081268162E 081466122G 083606142B 083608142D 085666162A 089111062G 089111082G 089112062G 0891810610 46400V - valve assembly, pressure control 47487M - grommet 47600 - actuator assembly, anti skid 47605+B - relay assembly, actuator 47610D - screw 47671MA - cover, actuator 47840 - bracket, actuator 47840M - bracket, actuator 47850 - module assembly, anti skid (ABS CONT UNIT) 47900M - sensor assembly, anti skid rear 47900MA - sensor assembly, anti skid rear 47910 - sensor assembly, anti skid front RH 47911 - sensor assembly, anti skid front LH 47950 - sensor rotor, anti skid rear 47970 - sensor, rotor anti skid front

Vanette Serena KVC23
